The battery charger for your 12 V Lead Acid Marine , RV Deep Cycle , UPS back up battery.
Display Shopping Cart
Lead Acid Marine , RV Deep Cycle , UPS battery Smart Charger , 3 Amp. output per hour for 12V Lead Acid Battery (worldwide use) --- UL & CE listed
Stock number
CH-LA1230UL
---

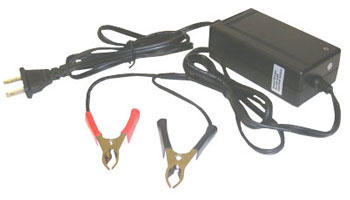

Smart charger for 12 V Lead Acid Marine & RV Deep Cycle / UPS Batteries , 3 Amp. output per hour. Priced at $20.95 each.
Specifications
Alligator Clips is installed in output terminal with 3.5 Ft. cable (red clip is positive)
The smart charger can be used worldwide and features with 3 stages charging , It will charge 12V lead acid battery. With built in auto shut off sensor to prenvent overcharging
This charger comes with an "Internal Resettable fuse" , don't need to change the fuse after over-load current cut-off
Specifications
INPUT
AC input voltage 110 to 240 VAC Worldwide power support
Input frequency 50/60Hz
Input Current Max 1.5A
CHARGE
The Battery range is between 10AH to 25AH
Max. charging current: 3A
Reverse Polarity Protection
Short Circuit Protection
OUTPUTS
RATED 12V 3.0A
with 3.7' long cable and one set of clips
ACTIVE STATE
Dimension(LxWxH): 118mm(4.6") x 64mm(2.5") x 40mm(1.6")
Weight: 320grams ( 11.2 Oz)
Active State
Model
Output current
Output voltage
Bicolor LED
1.Fast Charge
CC mode
3.0A
<15V
Orange
2.Continue Charge
CC&CV mode
3.0A or below
14.7V +/-0.15V
Orange
3.Stand-by charge
CV mode
<1.5A about
13.8V max
Green
4.Open State
CV mode
0A
14V max
Green
The product is
IN STOCK
