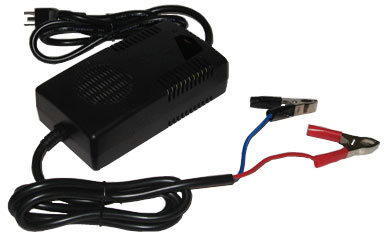

• Alligator Clip is installed in output terminal with cable

  • Red Alligator Clip = Positive

  • Black Alligator Clip = Negative

  • Must connect to battery with correct polarity. Battery Barn will not responsible for any damage by miss-use

Specifications

• INPUT
  • 100-240VC Worldwide power input support by Adjustable switch
    • 115VAC Switch for USA use
    • 230VAC Switch for international use
    • Must adjust switch with correct AC Power input. Battery Barn will not responsible for any damage by miss-use
  • Input frequency 50-60Hz
• CHARGE
  • The Battery range is between 20AH to 100AH
  • Charging current: 10.0A
  • Protection
    • Over current protection
    • Over voltage protection
    • Short circuit protection
    • Battery Reverse connect protection
• OUTPUTS
  • Rating output voltage: 13.8VDC with 3 stage charge mode
    • Stage 1: Charging current:  10.0A +/-0.5A
    • Stage 2: Charging voltage: 14.7V +/-0.3V
    • Stage 3: Floating voltage: 13.8V +/- 0.25V
  • Cut-Off current (Stage 2-3): 1.0 +/- 0.2A
  • Charging time: 2.5hrs for 20Ah SLA cell, 12.0 hrs for 100Ah SLA cell
  • Max power output: 150W
  • Ripple and noise: <300 mV
  • Efficiency: > 85%
• LED Status
  • Start Mode: LED green with cooling Fan turn on
  • Charging Mode: LED red
  • Floating Mode: Flashing between LED red and LED green (Almost fully charging, you can unplug power in this stage )
  • Fully charging Mode: LED green  ( waiting for long time to reach this stage.  To keep longer battery life, you don't need fully charged )
• Operation temperature: 0 'C - +40'C
• Operation humidity: 20% - 90%
• Storage temperature: -40'C - 70'C
• Storage humidity: 10% - 95%
• Dimension: 155mm (6.1") x 84mm (3.3") x 50mm (2.0")
• Weight: 680g (24oz)

Caution:

• The charger is designed for indoor use only.
• The charger should be horizontally place and operate in well ventilated condition, avoid from wet and keep it away from inflammable explosive material.
• Please do not disassemble the charger due to high voltage inside
