For the safety of your precious cargo

Monitor your horses, pets, or livestock  while trailering them
            Helpful for aligning trailer ball and hitch.
            Can be a barn cam or foaling monitor too !!

           It is so easy !

         Runs on battery power
           5 minute installation

No tools required


Satisfying reception quality
             on the monitor is promised


Battery Barn price : Lowest ever - $249.00 a set

         Shipping & handling are included

30 Day money back guarantee

     Everything is included to set up the system,
           we even include a battery for you.

Stock number - TE-0408---

Please click here to see what is in the box and optional accessories to make this unit works in every corner around your place.


With optional adapters
        The unit can be easily convert to a barn cam or foaling monitor.

As horsemen ourselves, we know how worrisome it is while trailering our horses.

After years of developing & testing, we believe Trailer Eyes TE-0408  wireless monitoring system is the most user friendly device on the market to monitor valued cargo in trailers.

                There is no need to drill holes in your trailer. Can be set up in 5 minutes. No tools required.

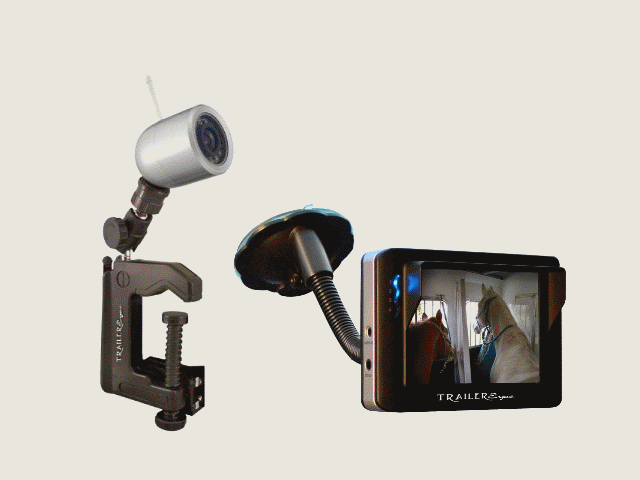

Here is how it works-

To set up the camera in your trailer


  • 1. Use the clamping base to mount the camera.The clamping base can be clamped on any pole or board which is less than 2 ¼” in diameter or thick.Choose the mounting spot and tighten the clip bolt on the clamping base.

  • 2. Loosen the tilt lock knob, adjust the camera , point it in the direction where you wish to monitor, and tighten the tilt lock knob.
  • 3. Insert a 9V battery. Turn the On/Off switch to the ON setting. A single 9 V battery can operate the camera up to 5 hours in day time, 3 hours under night vision mode. ( Rechargeable 9 V Lithium Ion battery and charger are available.)

The camera is set!

 To set up the monitor in your pulling vehicles--


  • 1. Mount the goose-neck suction mount to the windshield, dashboard, or window.

  • 2. Attach the monitor to the goose-neck suction mount.

  • 3. Attach the antenna connector to the monitor.

  • 4. Open the car door and mount the booster antenna (magnet base) on the side of your vehicle. Run the wire between the antenna and the monitor through the car door and the car frame,not through the car window and door frame.

  • 5.  Plug the power jack into the monitor, and then plug the 12V car lighter adapter into the lighter jack.

  • 6. Turn the monitor on.

  • 7. Adjust the position of the monitor, the antenna wire, and the power wire to avoid interference with the driver.



      Voilà ! The object of observation is in your monitor now.


Use it once
  you'll want it for every trip
